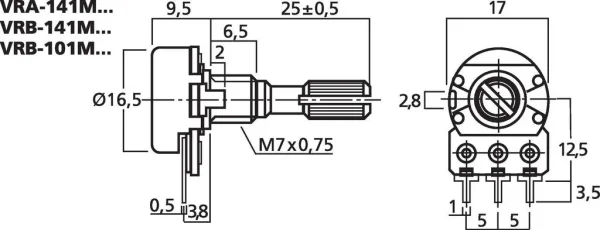

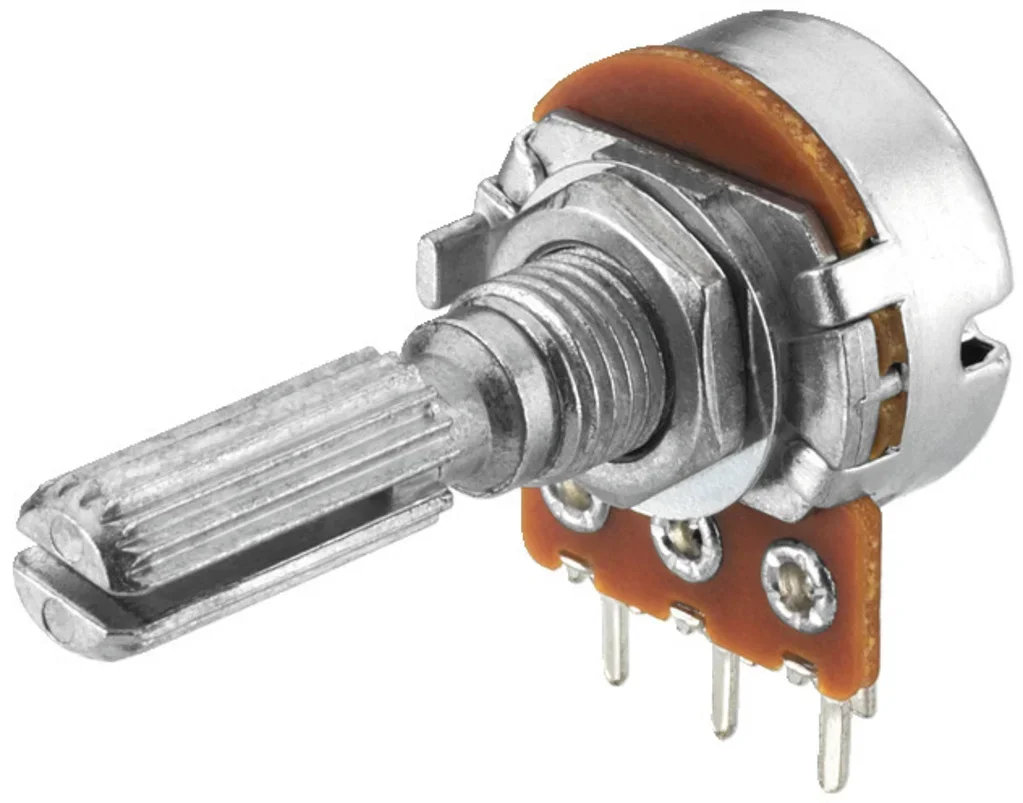

Mono-Potentiometer, 10 kΩ
- Linear
- 41er-Rastung
- Geschlitzte 6-mm-Achse
- Für 18-Zahn-Aufsteckknöpfe
- Mutternbefestigung und Print-Board-Lötkontakte
Technische Daten
| Widerstand | 10 kΩ |
| Char. | linear |
| Belastbarkeit | 0,2 W |
| Isolationswiderstand | < 100 MΩ/ DC 500 V |
| Prüfspannung | ˜ 500 V/1 Min. |
| Gleichlauf | ±3 dB, 0/-40 dB |
| Drehwinkel | 300° ± 5° |
| Rastung | 41 |
| Widerstand | 10 kΩ |
| Char. | linear |
| Belastbarkeit | 0,2 W |
| Isolationswiderstand | < 100 MΩ/ DC 500 V |
| Prüfspannung | ˜ 500 V/1 Min. |
| Gleichlauf | ±3 dB, 0/-40 dB |
| Drehwinkel | 300° ± 5° |
| Rastung | 41 |
Keine Maßangaben verfügbar.
